LF15 normally closed pressure switches are used for adjusting the pressure in the compressor tank to operate between two preset pressure values. The pressure switch has an unloader valve which prevents the air compressor from overloading. The handle can be used to manually power off the compressor. The four-way base connection makes the installation of additional parts more convenient.

Download PDF for more information.

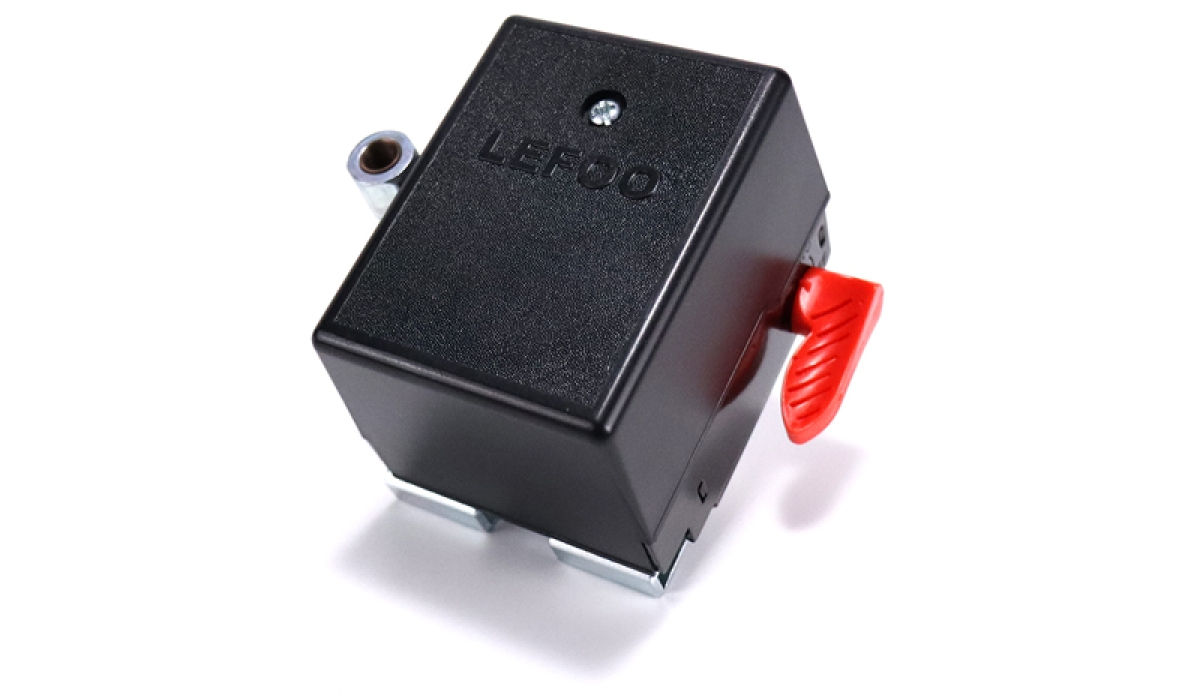

LF15 – FULLY CUSTOMIZEABLE AIR COMPRESSOR PRESSURE SWITCH

Name: LF15 – FULLY CUSTOMIZEABLE AIR COMPRESSOR PRESSURE SWITCH
Price: 45 USD
Availability: InStock

$45.00

Port Configuration; Connection Type

Connection Size

Unloader Valve

Direction of Unloader Valve

Unloader Valve Connection

Manual Cut Out

Cut In Pressure (between 44psi and 174psi)

0/10

Cut Out Pressure (22psi to 65psi above Cut In)

0/10

Quantity

Model	LF15
Media	Air, non-flammable or non-hazardous non corrosive gases
Pressure Adjusting Range	44 -174 Psi
Differential Pressure Range	22 - 65 Psi
Factory Settings	According to user's requirements (40 psi )
Pressure Set Point Tolerance	≤5%（Operating pressure value）
Max Working Pressure	174 Psi
Rated Voltage, Current, Frequency	120VAC/240VAC,26A/20A ,50HZ/60HZ
Contact Mode	NC
Working Temperature	-4~176° F
Voltage Resistance	No breakdown in one minute under 2500V
Installation Positions	Vertical /Horizontal
Protection Grade	IP20
